أجهزة ربط مغناطيسية

5A magnetic connector square 3pin male and female right anglel pogo pin

جميع الفئات

أجزاء تحول دقيقة

اتصل بنا

Ms. KIKI

union@upetech.net

13434524996

upetech

اتصل الآن

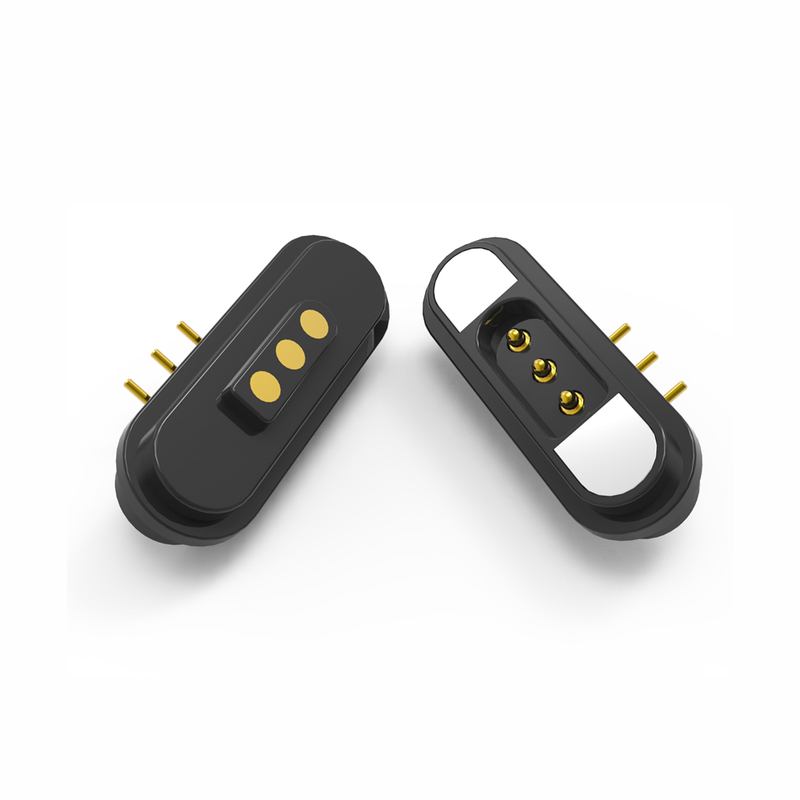

5A magnetic connector square 3pin male and female right anglel pogo pin

اسم العلامة التجارية:	UPE
رقم الطراز:	VIC0300A-/VIC0300C
الـ MOQ:	5000
السعر:	$1-$5
تفاصيل التغليف:	أكياس البولي ايثيلين
شروط الدفع:	ر/ر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

ISO9002

الوثيقة:

VIC0300A.pdf

اسم:

أجهزة ربط مغناطيسية

القوة المغناطيسية:

600 جم

الحياة الميكانيكية:

50000 دورة دقيقة

مادة:

النحاس ، NDFEB ، SUS304

قوة الربيع:

80g ± 20g

سمك القزم العامل:

1.0mm

حاضِر:

5.0A

فولاتج:

12 فولت

درجة حرارة التشغيل::

-25°C إلى +60°C

مقاومة الاتصال:

50mΩ Max (PIN)

القدرة على العرض:

5KPCS / يوم

إبراز:

5A magnetic pogo pin connector,right angle magnetic connector,3pin male female pogo pin

right angle magnetic connector

3pin male female pogo pin

وصف المنتج

5A Magnetic Connector Square 3pin Male and Female Right Angle Pogo Pin

UPE - Professional Magnetic Connector & Cable Manufacturer | Custom Solutions
UPE is a leading manufacturer of high-performance magnetic connectors and magnetic cable connectors, specializing in innovative, reliable, and customizable connectivity solutions.

Male Magnetic Connector Specifications

Materials

Insulator: HTN+30% UL94 V-0 black
Magnet: Neodymium iron boron

Mechanical Properties

Contact force: 80g±20g at 1.0mm working stroke
Male and female adsorption life test: 50,000 cycles
Adsorption capacity test: The parent docking adsorption is more than 600G

Electrical Properties

Reference voltage: 12V
Continuous working current: 5.0 A
Contact static impedance of the needle: 50mΩ Max (PIN)
High voltage test: AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC

Environmental Performance

Environmental Test: Salt Spray 48 hours

Female Magnetic Connector Specifications

Materials

The yellow metal needle part is gold-plated with brass surface
The plastic material is HTN+30%UL94 V-0 black, which can withstand high temperatures
The magnet adopts high-performance permanent magnet neodymium iron boron

Electrical Properties

Reference voltage: 12V
Continuous working current: 5.0 A
Contact static impedance of the needle: 50mΩ Max (PIN)
High voltage test: AC1000 V 0.5mA 3SEC / DC 1000V 0.5mA 3 SEC

Product Features

Adopts environmental protection materials, ROHS, REACH compliant
The attraction force of the magnetic male and female docking is more than 600G
Product anti-short-circuit structure design
Polarity and electrical direction are clearly identified
The magnet can be coated with epoxy resin, and the salt spray test can pass 48 hours
The pin feet are fixed on the PCB board, and the pin spacing size is stable

3Pin Male & Female Magnetic Connector Parameters

Name	Magnetic Connector
Type	Male/Female
Pin	3pin
Color	Black
Pogo pin	Brass 0.125 um Au over 1.5um~2.5um Ni
Female pin	Brass 0.125 um Au over 1.5um~2.5um Ni
Shell	SUS304
Insulator	HTN+30% UL94 V-0 black
Magnet	NdFeB N52 1.5um~2.5um Ni
Spring force	80g±20g, at 1.0mm working stroke
Mechanical life	50000 cycle Min.
Magnetic force	600g
Current	5.0A Max
Voltage	DC12V
Contact resistance	50mΩ Max (PIN)
Operation Temperature	25℃ to +60℃
Salt spray test	48H
Certification	ROHS or REACH compliant product
Test	100% open and short test

Technical Drawings

3Pin Male Magnetic Connector Technical Drawing

3Pin Female Magnetic Connector Technical Drawing

Advantages of Magnetic Connector

1. Effortless Connectivity

Automatic Adsorption - Smart, user-friendly design enables instant and secure connections with magnetic alignment
Anti-Fall Protection - Easily detaches from the charging interface while keeping devices stable, reducing accidental drops

2. Unmatched Durability

Extended Lifespan - Rated for 100,000-200,000 cycles, ensuring long-term reliability
IPX8 Waterproof & Dustproof - Female end designed for harsh environments (submersion up to 1M for 30 mins)

3. High-Performance Charging & Data Transfer

Fast Charging (5A-10A) - Supports high-current transmission for rapid power delivery
High-Speed Signal Transmission - Replaces traditional USB 2.0/HDMI 1.3, enabling Video/Audio signal transmission with stable high-frequency performance

4. Customizable & Safe Design

Aesthetic Flexibility - Tailored appearance to match your device's design language
Anti-Short Circuit & Foolproof - Built-in protection against misuse and electrical faults

Magnetic Connector Applications

Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones, Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection
Medical equipment, wireless equipment, data communications equipment, telecommunication equipment, Automation and industrial equipment, audio-visual equipment
Aviation, aerospace electronic, military communication
Automotive, car navigation, test and measurement equipment
Consumer Electronics (mobile phones, tablet computers, Bluetooth headsets, camera, watch, portable consumer electronic products and many other electronic fields)

Why Choose UPE?

1. Specialized Expertise in Magnetic Connectors

Focused R&D: UPE has dedicated experience in magnetic connectors
Customization: UPE can tailor magnet strength, pin plating (gold/nickel for ≤50mΩ resistance), and housing materials (black PBT/nylon) to your needs

2. High Durability & Compliance

10,000+ Cycles Guaranteed: Our connectors undergo rigorous testing to meet your mechanical life demand
Certifications: Compliant with UL, or RoHS standards--critical for consumer/medical markets

3. Competitive Manufacturing

Cost-Effective Tooling: We offer low MOQs (e.g., 1K-5K units) with competitive pricing for small-to-medium batches
Quality Control: In-house testing for contact resistance, pull force, and current load to ensure reliability

4. Fast Prototyping & Support

3D Samples in Days: Rapid prototyping for fit/function checks
Engineering Support: Assistance with pinout optimization, EMI shielding, or waterproofing (IP68)

5. Tailored Designs

Our in-house team of professional engineers collaborates closely with clients to develop fully customized magnetic pogo pin connectors tailored to your specific requirements.

6. Versatile Solutions

We design a wide range of magnetic connectors for diverse applications, ensuring optimal performance, durability, and seamless connectivity.

7. End-to-End Support

From concept to production, we provide end-to-end magnetic connector customization services, delivering solutions that meet exact industry standards and application needs.

How to Place Your Order

1. Submit Your Requirements

Contact our sales team via:

Email: union@upetech.net
Phone: +86 13434524996
Online Form: www.pogopinsconnector.com

Provide details:

Application (e.g., medical, automotive, consumer electronics)
Connector type (e.g., magnetic pogo pin, charging cable)
Specifications (voltage, current, size, waterproof rating, etc.)
Quantity & lead time

2. Get a Custom Solution (If Needed)

Our engineers will review your needs and propose a custom design (if required)
We'll share 3D models, samples, or technical drawings for approval

Payment & Shipping Information

Payment Term

50% Deposit (Paid upfront): Covers production costs (materials, labor)
50% Balance (Paid before shipment): Ensures quality control and commitment from both parties

Payment Method

T/T (Bank Transfer), PayPal, OCBC Bank
Recommendation: Use PayPal for samples (safer). Use T/T for bulk orders (lower fees)

Lead Times

Sample Lead Time: Inventory sample 2-3 Working day / customized sample 5-7 Working day
Production Lead Time: 10-15 Working day

Shipping Information

Made For: America, Europe, Asia, South African
Trade Term: EXW
Freight: Air, Sea, Express
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
