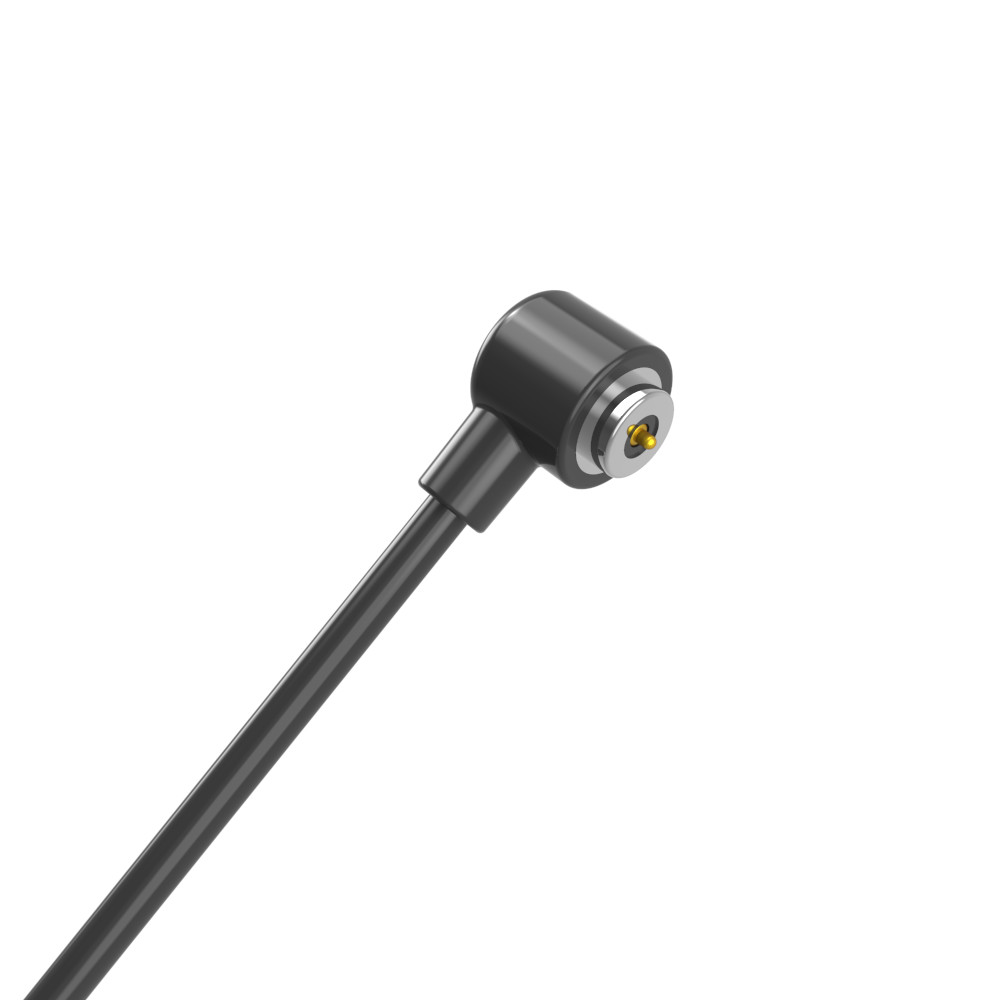

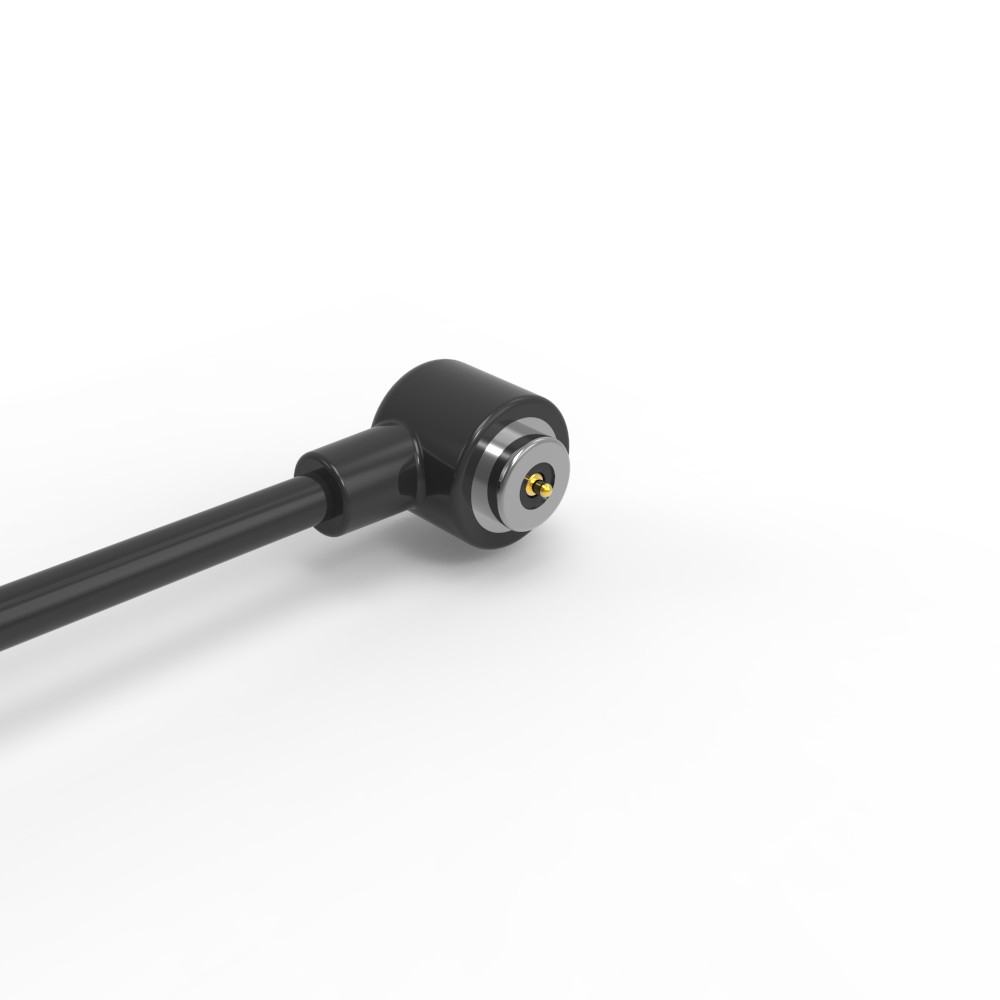

OD4.0mm 90 ° TPE Cable Male Female USB Magnetic Charger Cable Connector

OD4.0mm 90 ° TPE Cable Male Female USB Magnetic Charger Cable Connector.

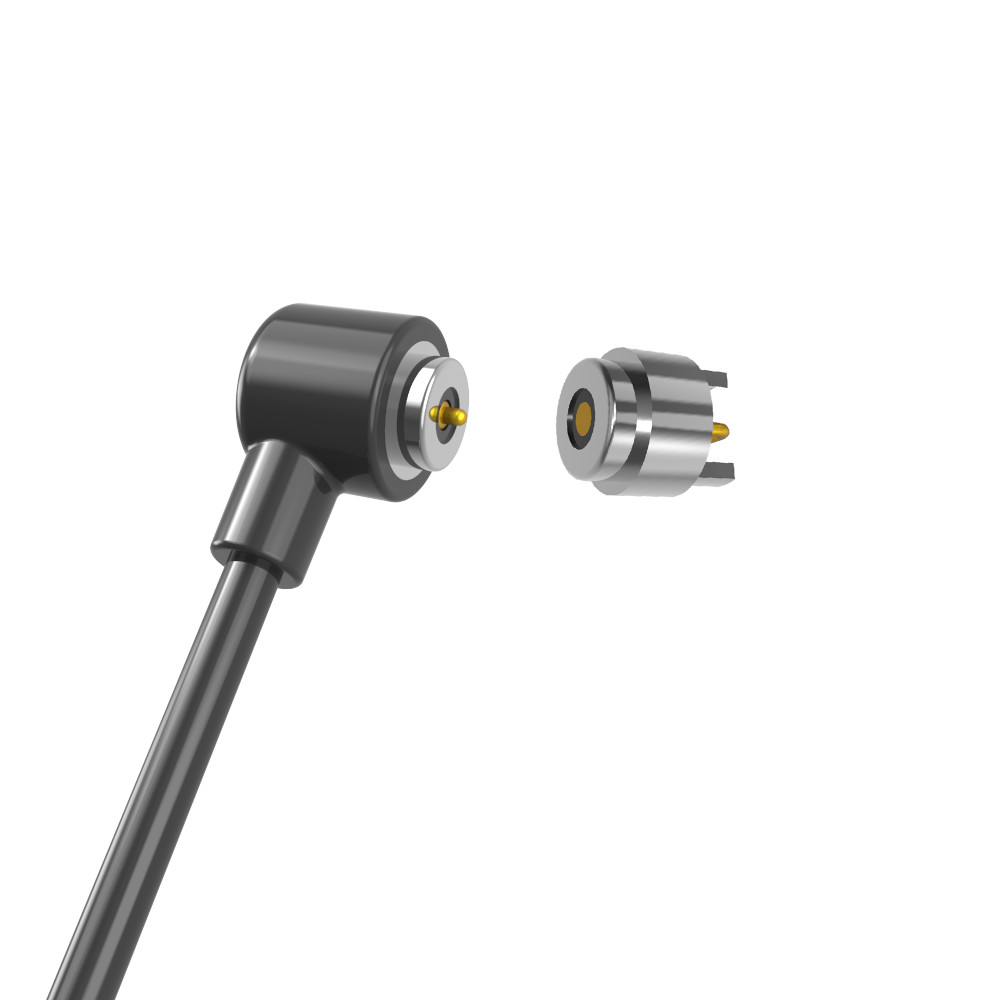

Male magnetic cable connector:
...Materials:
Pogo Pin: Brass(Plunger&Barrel plating 5U" Min Au over 60~100U" Ni );
Housing: Black HTN+30%GF UL94 V-0;
Magnet:NdFeB N52 Plating Ni;
Cable:Black OD 2.0*2C( TC19*0.08),
Wire Jacket:Black TPE 90A.
Connector Jacket:Black TPE 90A..
...Mechanical:
Spring force:50g±10g,at 0.70mm working storke.
Full storke:0.90mm.
Mechanical life:10000 cycle Min..
...Electrical:
Voltage:12V.
Current:1A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
..ROHS or REACHcompliant product.
..Salt spray test:48 H.

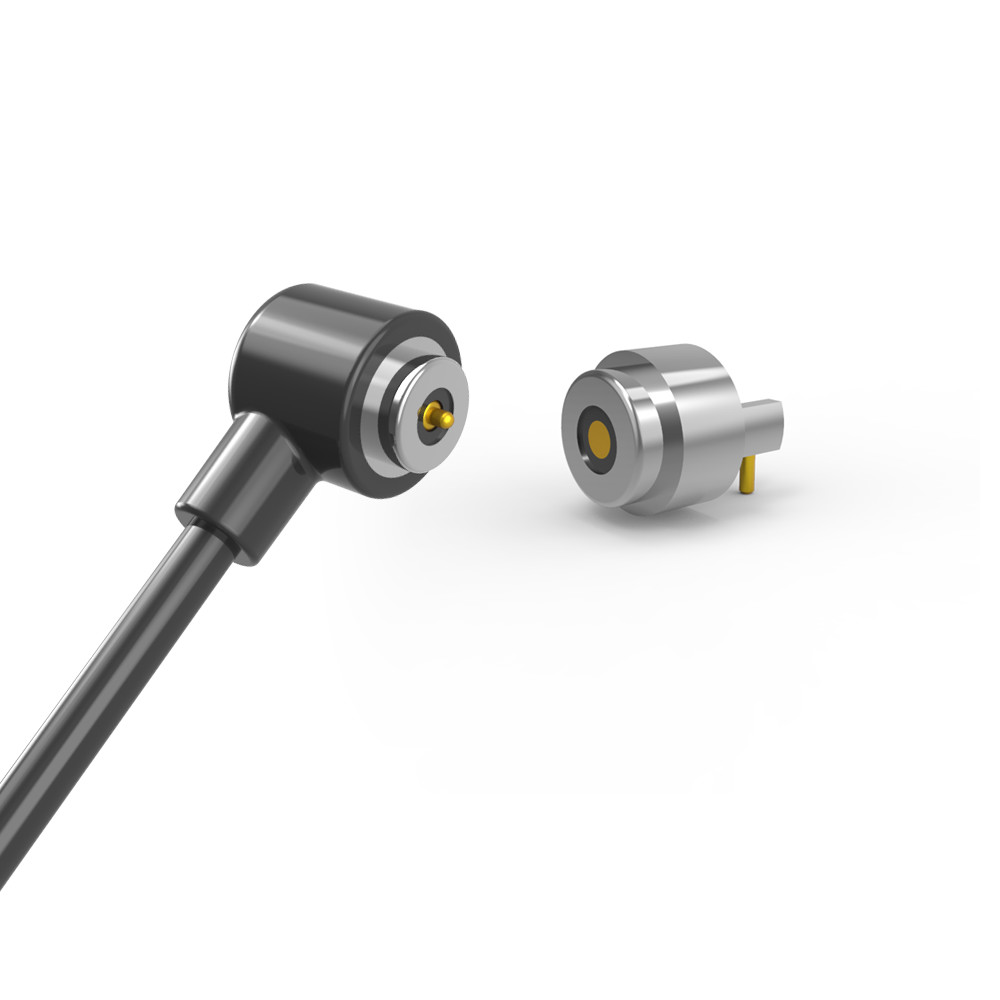

Female magnetic connector:

..Materials:
PIN:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni ;
Housing: Black HTN+30%GF UL94 V-0 ;
Shel1: Brass C3602 Plating Ni;
Magnet: NdFeB N52 Plating Ni
...Electrical:
Voltage:12 V.
Current:1.0A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
ROHS or REACHcompliant product.
Salt spray test:48 H.

Product application description (not limited to the following):
1.Plug-in welding PCB board;
2. Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

Circular 2Pin Magnetic Cable Connectors Parameter:

Circular 2Pin  Cable Connector Technical Drawing

Circular 2Pin  Female Magnetic Connector Technical Drawing

Recommended pcb layout

Advantages of Magnetic Connector:

1.Effortless Connection ("Automatic Adsorption")

2.Safety & Durability

3.Robust Environmental Protection

4.High-Power Delivery

5.Design Flexibility

6.Advanced Signal Capability
