OD4.0mm 2Pin Round Type Magnetic Charger Usb Cable Connector For Smart Blindfold

OD4.0mm 2Pin Round Type Magnetic Charger Usb Cable Connector For Smart Blindfold.

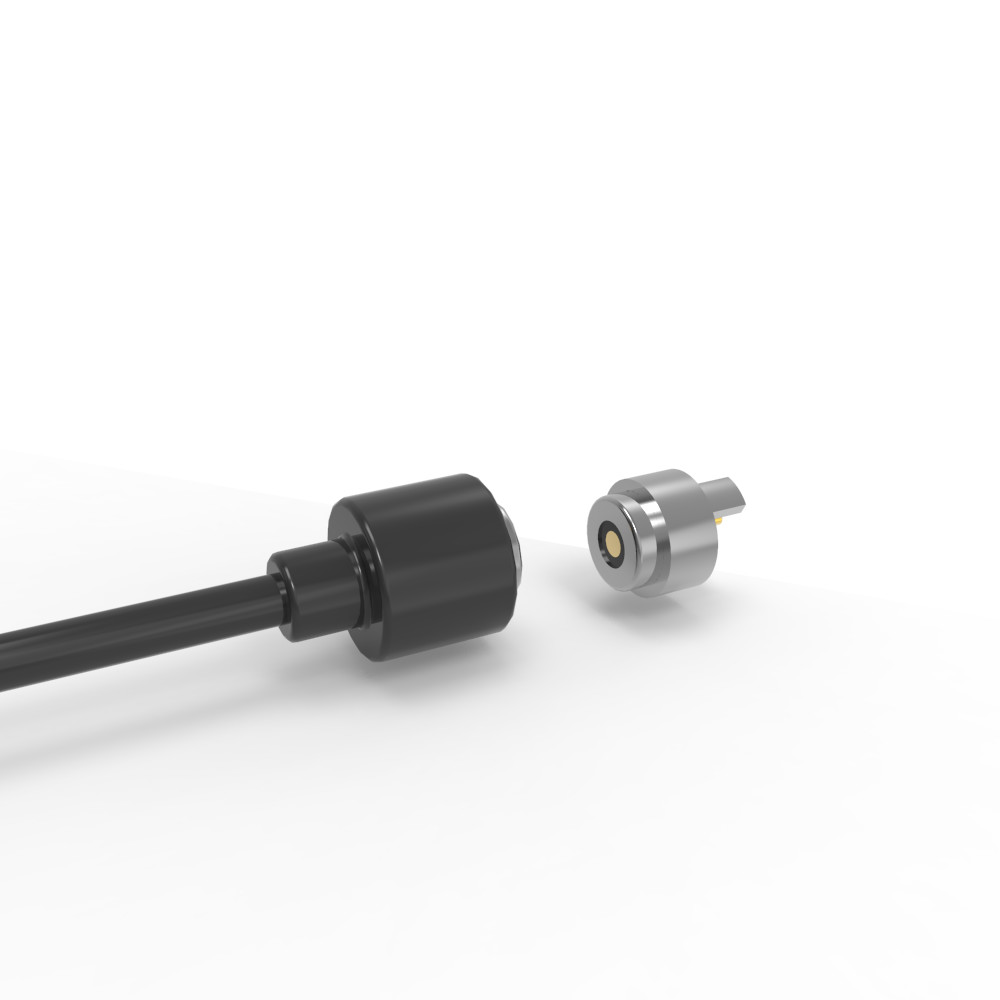

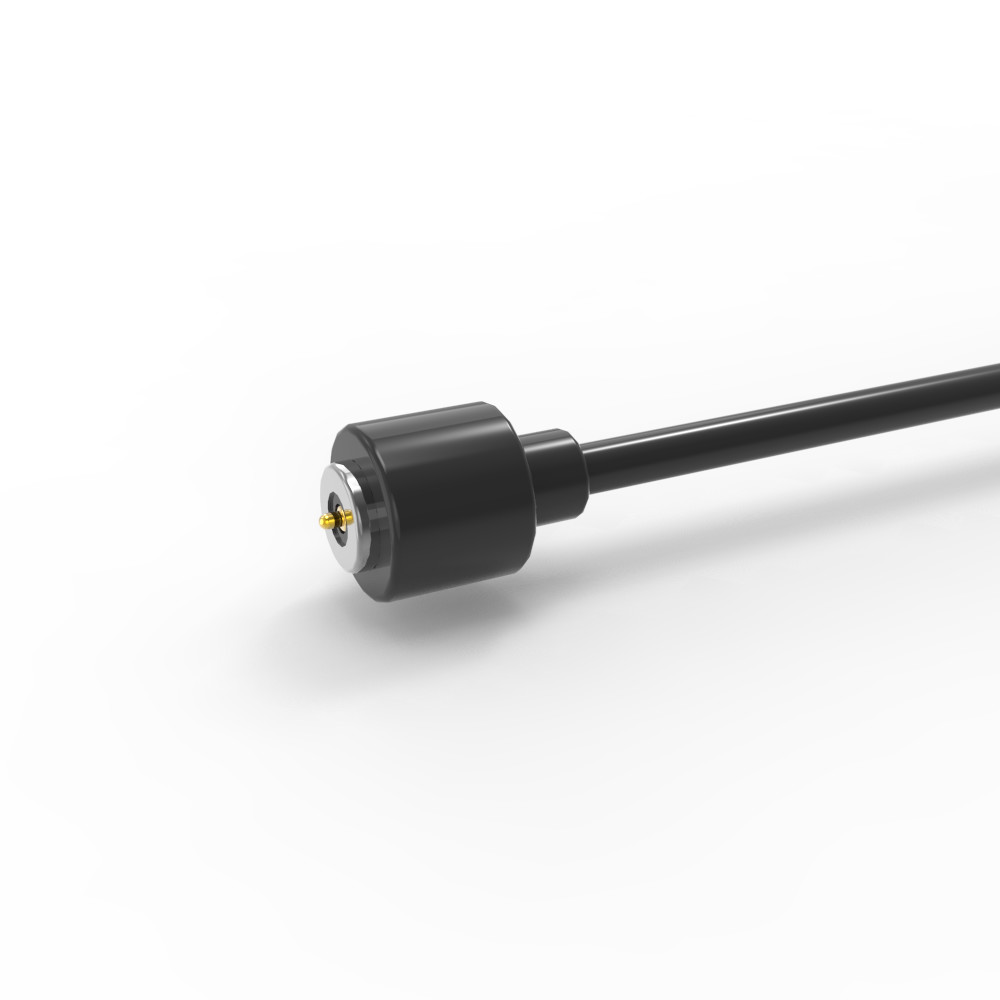

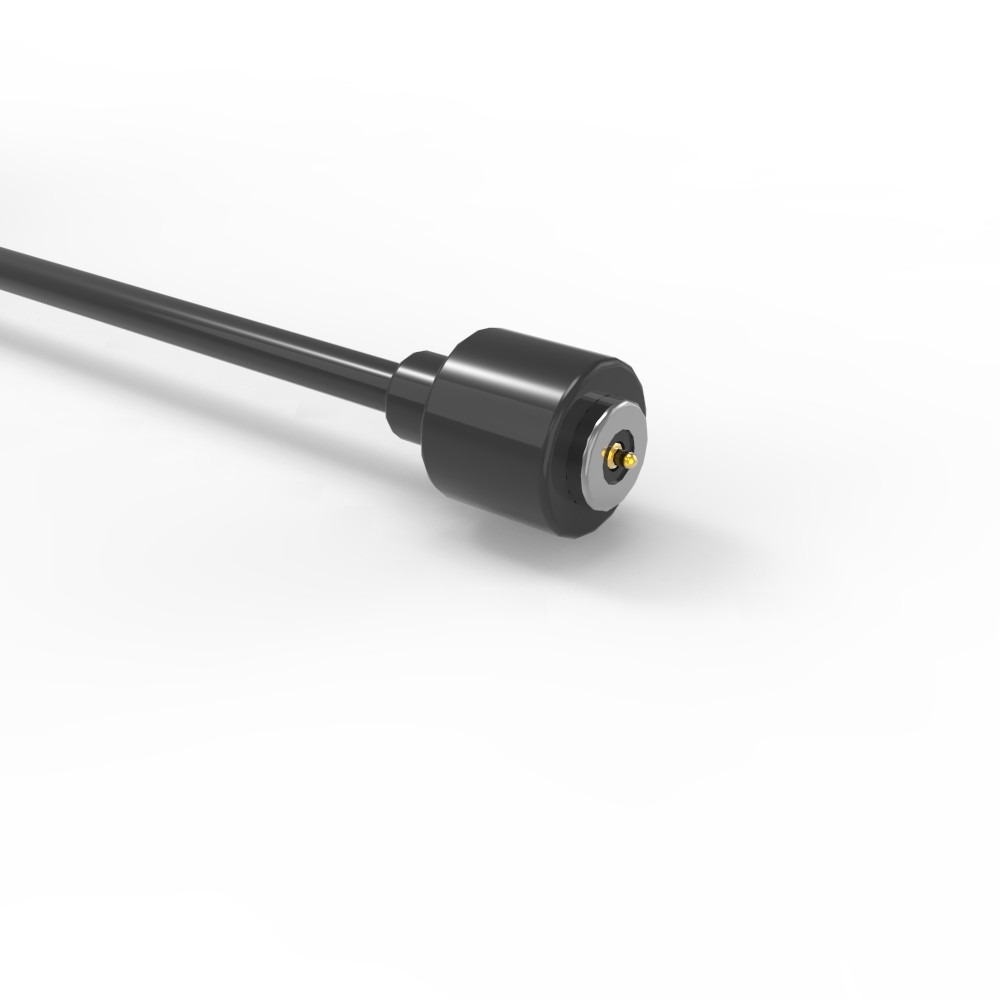

Male magnetic cable connector:
...Materials:
Pogo Pin: Brass(Plunger&Barrel plating 5U" Min Au over 60~100U" Ni );
Housing: Black HTN+30%GF UL94 V-0;
Magnet:NdFeB N52 Plating Ni;
Cable:Black OD 2.0*2C( TC19*0.08),
Wire Jacket:Black TPE 90A.
Connector Jacket:Black TPE 90A..
...Mechanical:
Spring force:50g±10g,at 0.70mm working storke.
Full storke:0.90mm.
Mechanical life:10000 cycle Min..
...Electrical:
Voltage:12V.
Current:1A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
..ROHS or REACHcompliant product.
..Salt spray test:48 H.

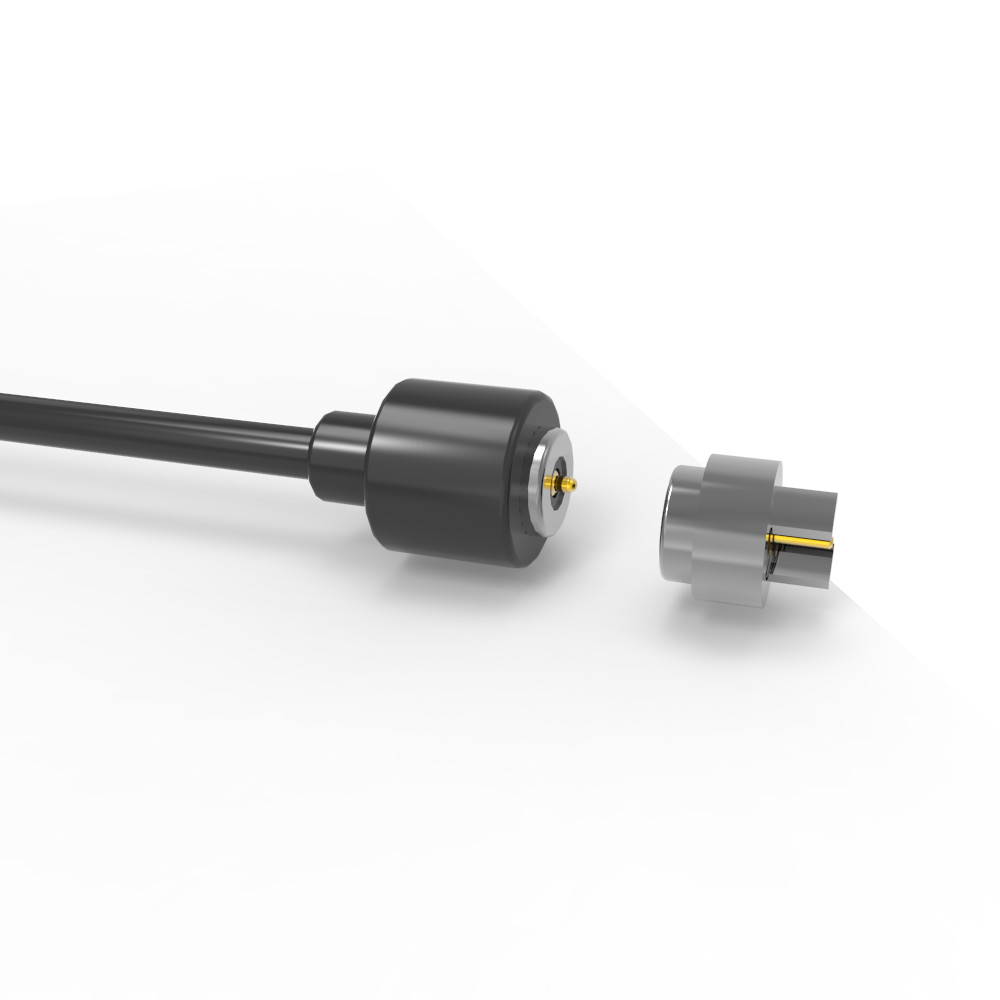

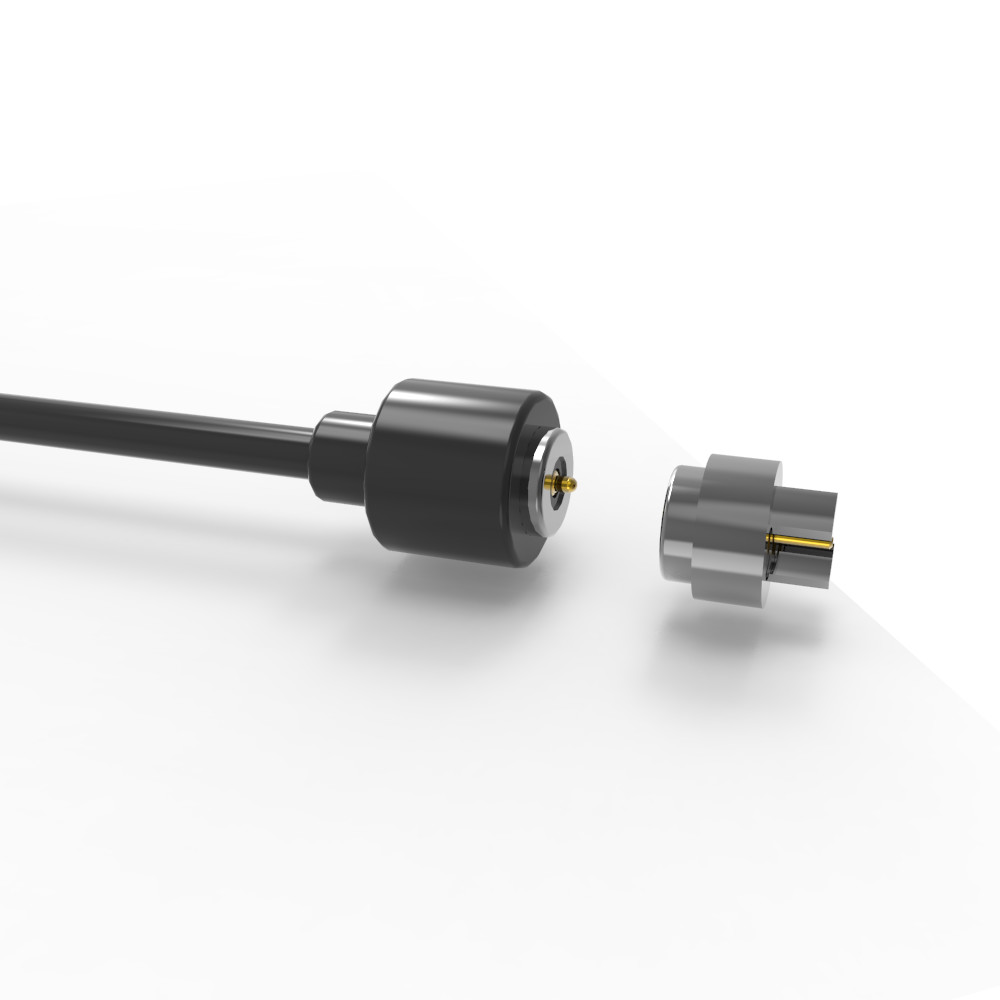

Female magnetic connector:

..Materials:
PIN:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni ;
Housing: Black HTN+30%GF UL94 V-0 ;
Shel1: BrassC3602Plating Ni;
Magnet: NdFeB N52 Plating Ni
...Electrical:
Voltage:12 V.
Current:1.0A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
ROHS or REACHcompliant product.
Salt spray test:48 H.

Product application description (not limited to the following):
1.Plug-in welding PCB board;
2. Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

Circular 2Pin Magnetic Cable Connectors Parameter:

Circular 2Pin  Cable Connector Technical Drawing

Circular 2Pin  Female Magnetic Connector Technical Drawing

Recommended pcb layout

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission
