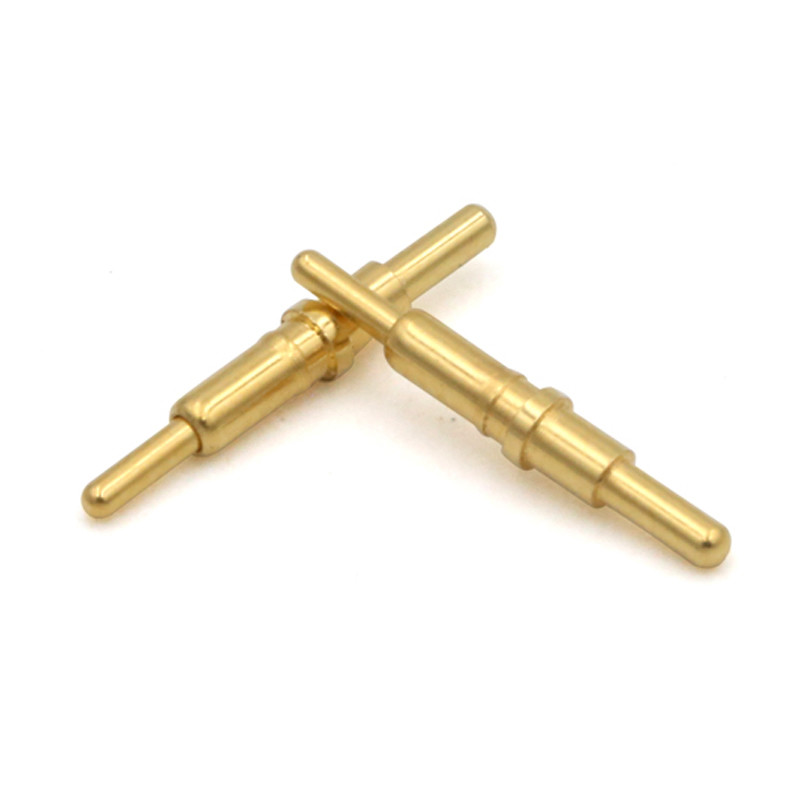

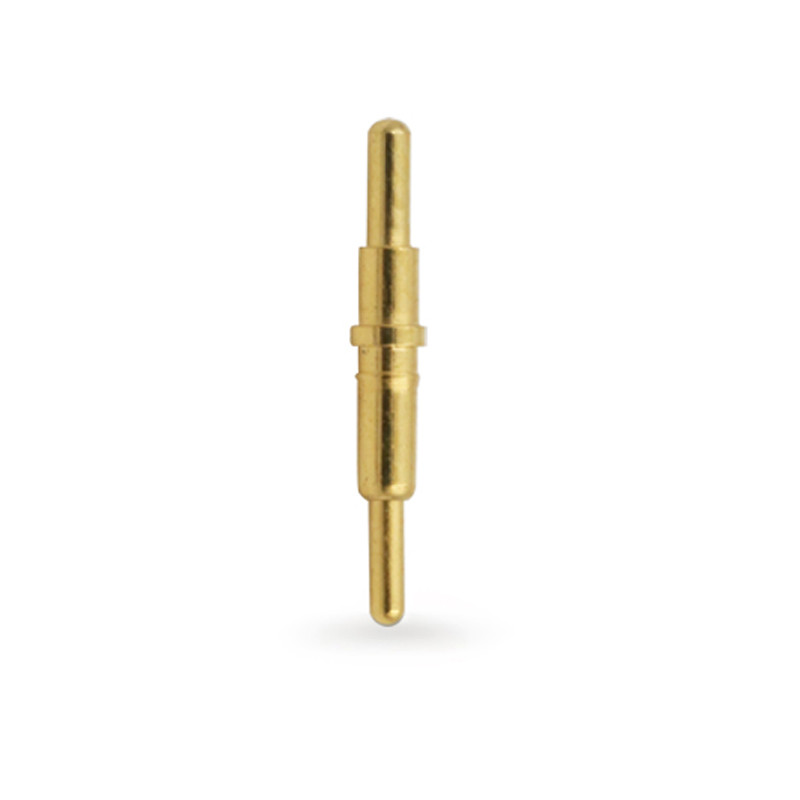

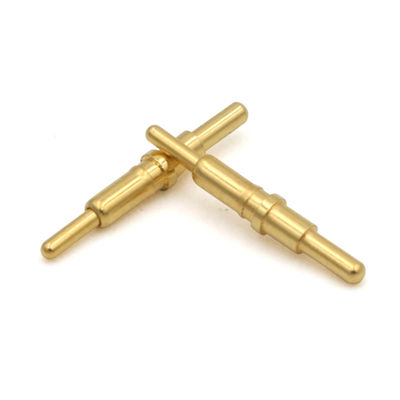

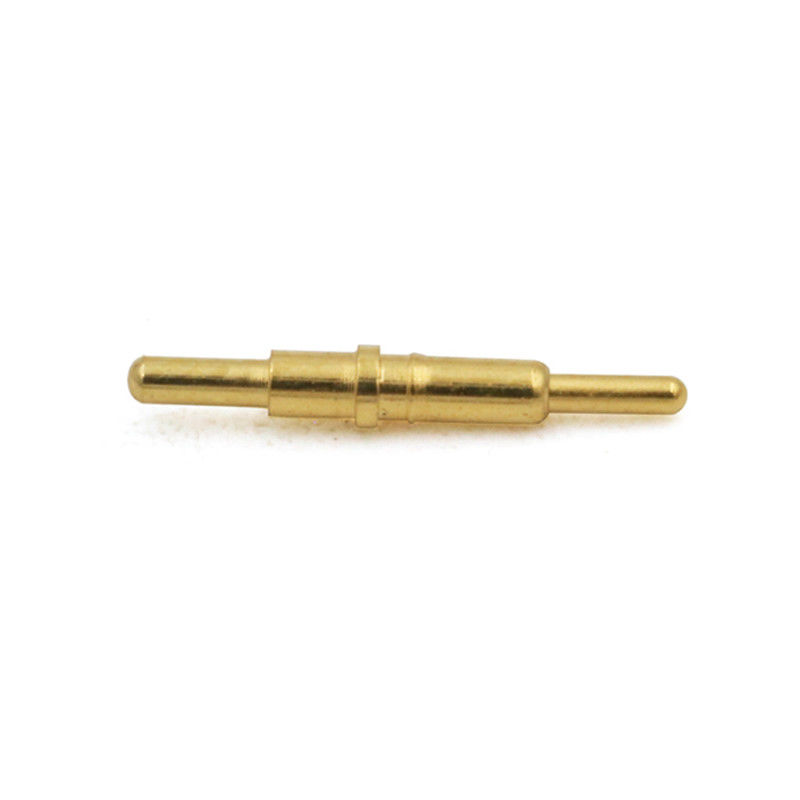

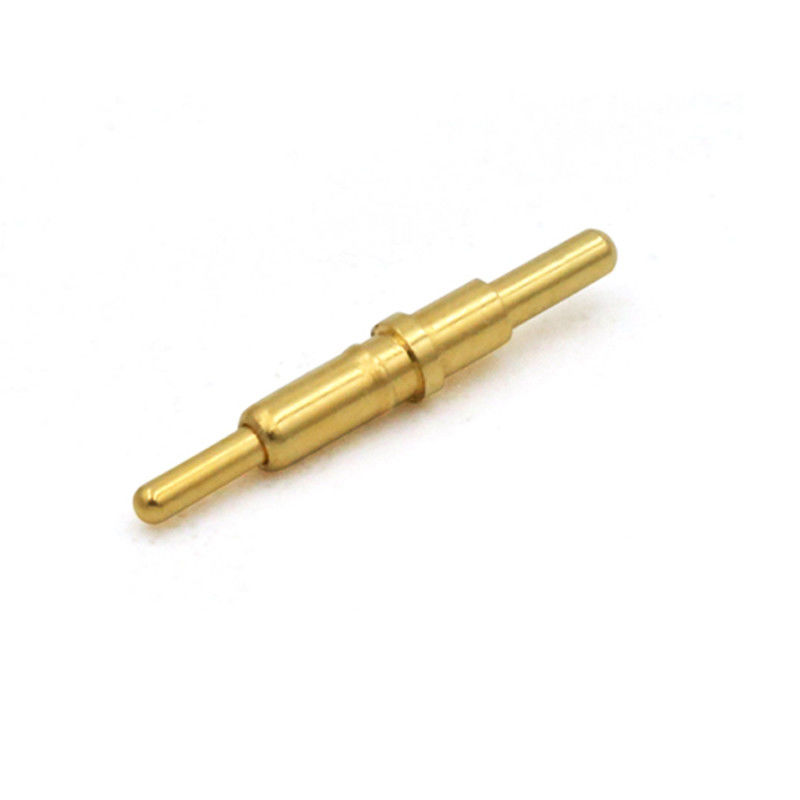

Brass Double Head Spring Loaded Contact Pogo Pin For Clamp Remote Control

المعلومات الأساسية
مكان المنشأ: الصين
اسم العلامة التجارية: UPE
إصدار الشهادات: ISO9001
رقم الموديل: دبوس بوجو مزدوج الرأس
الحد الأدنى لكمية: 10000
الأسعار: $0.1-$0.5
تفاصيل التغليف: أكياس البولي ايثيلين
وقت التسليم: 10-12 يوم عمل
شروط الدفع: T/T
القدرة على العرض: 50kpcs/يوم
معلومات تفصيلية
اسم: دبوس بوجو مزدوج الرأس المواد: النحاس C3604 ، SUS304
مقاومة التواصل: 50mΩ الحد الأقصى في ارتفاع العمل درجة حرارة العمل: -40 ℃ ~+130 ℃ خلال 24 ساعة.
تجربة بخاخ الملح: 48 ح اللون: أصفر

منتوج وصف

Brass Double Head  Spring Loaded Contact Pogo Pin For Clamp Remote Control.

UPE  provide professional POGO PIN customization service, custom of various shapes is available, small structure. And Customized high current with 15A-30A pogo pin. Different products and pogo pin solutions can be designed according to different customer needs.

A Pogo Pin is a type of electrical connector used to establish a temporary connection between two circuits. It consists of a spring-loaded plunger inside a barrel, allowing it to compress and maintain reliable contact when pressed against a conductive surface.

Pogo Pin Parameter List:

Name

Solder cup pogo pin

Plunger

Brass C3604

Barrel

Brass C3604

Spring

SUS304

Mechanical life

50000 cycle Min..

Contact resistance

50m  Max (PIN).

Operating Temperature

-40℃~+130℃within 24 hours.

Resistance to Solding hear

260℃±5℃ 20s±2s

Salt spray test

48H

Certification

ROHS or REACH compliant product

Test

100% open and short test


According to customer different requirements, we have 8 types Exterior  Structure POGO PIN for customers choose, for the standard POGO PIN, UPE designed the total height of the product is 2.8mm ~ 11.0mm( the total height is not include DIP pogo pin's tail length).

The following are 8 types structures for your reference and selection:
Brass Double Head  Spring Loaded Contact Pogo Pin For Clamp Remote Control 0
SMT: Good stability, the bottom of the Barrel is a flat bottom design, which is easy to solder on the PCB board
DIP: There is a positioning pin at the tail of the Barrel. When welding with the PCB, no deviation will occur, good positioning effect and firm
welding.
Double Head: The design of the double head Pogo pin provides designers with more flexibility in the bi-directional board-to-board
connection ,the double head pin does not need to be welded.
Right Angle: The tail of the Pogo Pin is bent, providing designers with more choices in the use of space , the tail can also be soldered with wire.
Soler Cup: Suitable for cable product, easy to weld with wire

Screw-type: The products with special specifications can meet the different needs of customers, and can be customized according to the needs

of customers.

One-piece type: It can pass large currents, be customized according to customer requirements, and meet different customer needs.

Spherical ball type: Lateral force is available, and it can be customized according to customer requirements to meet different customer needs.


UPE Pogo Pin Internal Structure according to customer requirements to match suitable one

Brass Double Head  Spring Loaded Contact Pogo Pin For Clamp Remote Control 1

A.Structure description:Plunger for oblique bevel

Structural advantages:Conventional use, impedance stability.long life
Application method:SMT & DIP Regular use
Structure use precautions:Cannot exceed the limit working stroke

Brass Double Head  Spring Loaded Contact Pogo Pin For Clamp Remote Control 2

B.Structure description:Plunger for drilled

Structural advantages:
In a limited space, the plunger can perform maximum compression.
Application method:SMT & DIP Regular use
Structure use precautions:Can not exceed the limit stroke and excessive current use

Brass Double Head  Spring Loaded Contact Pogo Pin For Clamp Remote Control 3

C.Structure description:Plunger for flat

Structural advantages:Turning is easy to machine, for space structure based on A&B
Application method:SMT & DIP Regular use
Structure use precautions:Can not exceed the limit stroke and excessive current use

Brass Double Head  Spring Loaded Contact Pogo Pin For Clamp Remote Control 4

D.Structure description: Barrel inside added insulating beads

Structural advantages: The impedance is more stable, suitable for current use above 10A
Application method:SMT & DIP Regular use
Structure use precautions: Cannot exceed the limit working stroke

Brass Double Head  Spring Loaded Contact Pogo Pin For Clamp Remote Control 5

E.Structure description: Both sides of the plunger can be compressed

Structural advantages: Save space of structure,long distance, large compression board to board contact
Application method: Board to board docking
Structure use precautions:  Cannot exceed the limit working stroke

Brass Double Head  Spring Loaded Contact Pogo Pin For Clamp Remote Control 6



F.Structure description: Four-piece combination

Structural advantages: High press smoothness, plunger deflection small, waterproof and dustproof. The working life is relatively longer. Overpressure will not cause product failure.
Application method: High current, high performance, waterproof and dustproof

Brass Double Head  Spring Loaded Contact Pogo Pin For Clamp Remote Control 7

G.Structure description: Intermediate shaft compression

Structural advantages: Simple structure, can pass high current.
Application method: Weldinng high current use
Structure use precautions: Cannot exceed the limit working stroke

Brass Double Head  Spring Loaded Contact Pogo Pin For Clamp Remote Control 8

H.Structure description: Ball compression contact

Structural advantages: Simple structure and easy processing
Application method: Small working stroke use
Structure use precautions:
Cannot exceed the limit working stroke

Product Application:
1)PCB board;
2)Digital camera/Medical products/ Printer cartridges;
3)Golf handle/ Electric vehicles/ Telephony applications;
4)Cardiac defibrillator/Car charging /Air purifier;
5)LED flat luminaries/LED flash light/Tablet/Laptop/PC ;
6)Power bank/ Digital product/ Small household electrical application;
7)Charging products/Signal transmission products etc


Why do customers choose UPE?

1.Customization & Flexibility

2.Fast Samples = Faster Time-to-Market

3.Every connector undergoes rigorous quality checks( Incoming Material Inspection,In-Process Quality Checks,100% Final Testing,Traceability & Compliance)

4.Customer-Focused QC Flexibility

5.Real-Time QC Collaboration


Spring-Loaded Pogo Pin Connector parameter performance

Name of Parts

Parameter performance table

Barrel Materia

Brass

Beryllium copper

Phosphor Bronze



Plunger Material

Brass

Beryllium copper

Phosphor Bronze

Stainless steel

Spring options

Stainle

Music wire






Plating requirements


Gold-Au




Silver-Ag




Palladium-Nickel

        (Pd-Ni)



Rated Current

1A, 2A, 3A ,5A,15A or 30A (different structures)

Rated Voltage

DC 12V 24V

Contact Resistance

30mΩ 50mΩ Max. (stillness)

Life test

50,000 cycles Min. 1000,000 cycles Max

Reflow Temp.

265°, 4~5sec

POGO PIN Reliability Test

Retention Force

At rated cycling of 500±50 per hour,50,000 cycles minimum


Humidity

EIA-364-31,Test method II, Condition A Subject mated connectors to relative humidity of 90% to 95%RH and a temperature of 40 ± 2 relative humidity for 96 hour.


Resistance to Solder Heat




EIA-364-56,Procedure 5,Level 2 265+10/-0for 30 to 35 seconds




Salt Spray



EIA-364-26,Test condition B Subject mated connectors to 5±1% salt-solution

concentration, 35+1/-2 for 48 hours.

Spring force test



Normal Force Test Procedure,100g±20g at working height



Temperature Life



EIA-364-17,Test method A,condition 4,Test time condition A Subject mated

connectors to 85± 2 for 96 hours.

Solderability



EIA-364-52 Dip into the 265±5, 60/40±5% Sn/pb solder for 4.0~5.0 second

Contact Resistance



EIA-364-23 Measure the contact resistance with a test current of 100 mA maximum and 20 mV voltage maximum


Testing equipment:

We have an independent laboratory and equipped with relevant experimental equipment, such as

Insertion force testing machine, Two-dimensional projector, Thickness meter, Automatic inspection machine, Insulation Resistance Tester

Metallographic sample polishing machine, Salt spray tester, Current temperature rise tester, Load stroke curve instrument, Automatic inspection machine, ROHS tester, Roughness tester,Elastic impedance tester, Life tester, etc.


UPE Company’s Competitive Advantages:

1. High-Technology Production
Utilizes advanced manufacturing techniques for superior product quality.


2. Systematic Management System
Streamlined processes ensure efficiency and consistency in production.


3. ISO 9001 Certification
Demonstrates commitment to international quality management standards.


4. RoHS Compliance
All products meet Restriction of Hazardous Substances (RoHS) regulations, ensuring environmental and safety standards.


5.Short Development Lead Time
Faster prototyping and production cycles, enabling quicker market delivery.


6. Competitive Pricing & Stable Quality
Cost-effective solutions without compromising on reliability.


Payment method:

T/T (Bank Transfer),PayPal ,OCBC Bank

Recommendation:

Use PayPal for samples (safer).

Use T/T for bulk orders (lower fees).


Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable


Pakaging & shipping

Brass Double Head  Spring Loaded Contact Pogo Pin For Clamp Remote Control 9
